Xenon Lamp Accelerated Weathering Test Machine/Air Cooled Xenon Arc Test Chamber
Product Description:
Xenon Air-Cooling Aging Test Chamber
Xenon Water-Cooling Aging Test Chamber,is designed to simulate full sunlight spectrum to produce destructive effect on material. The chamber cansimulates the light, temperature, rainfall (spray) and condensing (humidity), is mainly used to test aging resistance of products or spare parts affected by natural environment, it tests the material aging-resistant performance in sunlight, rain, temperature and humidity, you can know the products quality at a very short time, such as the depigmentation, transmissivity, gloss, peeling, hard, softening.
Specifications:
Xenon arc test chamber
1. We are manufacturer, offer best price for you.
2. Major parts adopt imported brands.
3. LCD touch screen controller, easy operation.
Features:
1. Type and standard: (water cooled type) (fullspectrum) comply with standard: GBT /2424.14-1995.
2. Xenon lamp power: 3KW (water-cooled all-solar spectrum long-arc xenon lamp) , 1 Piece, Lifetime: 1200 hours.
3. Xenon lamp radiation intensity: (3--400Nm) 110 w/m2
4. Trigger power: 3kw , Working voltage: AC 220V, Working- current: 25 ±3A.
5. Test blackboard temperature: 89 ℃ ±3
6. Temperature uniformity: ≤ 3 ℃
7. Humidity range:55%HR -90%HR
8. Distance from Arc Center to specimen: 250~300 mm effective exposure area: 6400cm2
9. Studio size: 600 x 600 × 600 (Length, Deepth,Height)
10. Lamp tube: 1 pcs
11. Spraying system: spraying time 999 minutes, can be set, shutdown time: 999 minutes, can be set
12. External Dimension: 1300x1350x1850mm

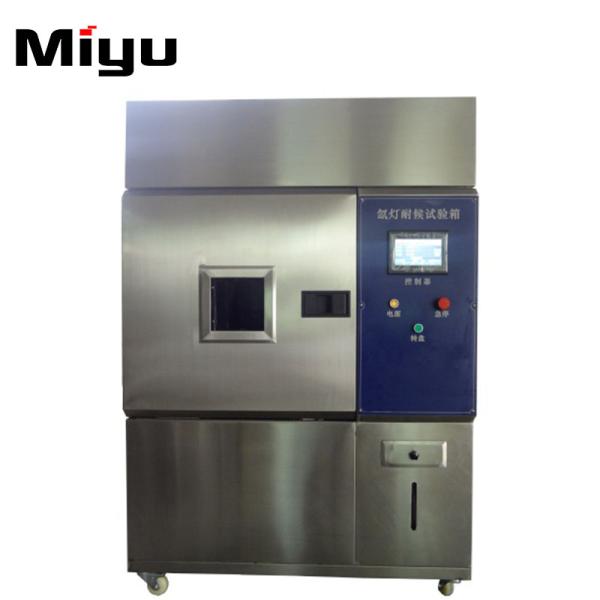

Tester picture:
FAQ
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 1 year warranty after shipment. Generally, we offer 1 year for the FREE maintenance for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
Normally, the delivery time is 10-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
4. How to install and use the product?
We will send you operating instructions, most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at your location.
